Doosan Lynx 2600Y Series

The Doosan Lynx 2600Y series includes the largest of our Lynx Y-axis horizontal turning centers

Features
  • Max chuck Size - 255mm
  • Max Turning Diameter - 376mm
  • Max Turning Length - 610mm
Share this series

or copy link

The 2600Y range is the largest Doosan LYNX series so far. With the same fast linear cross roller guideways and machining capability for aggressive cuts, it provides the same precision performance as its smaller cousins, but with a 376mm turning diameter with a maximum turning length of 610 mm

Technical Specification

Chuck size 10inch
Bar Capacity 81mm
Max. Turning Diameter 380mm
Max. Turning Length 610mm
X Axis Rapid Traverse 30m/min
Z Axis Rapid Traverse 30m/min
X Axis Travel distance 250mm
Y Axis Travel distance 105mm
Z Axis Travel distance 680mm
Max. Spindle Speed 3500r/min
Max. Spindle Power 18kW
Max. Spindle Torque 403N·m
No. of tool station 12
Rotary Tool r/min 5000r/min

Series Dimensions

Length 3425mm
Width 1920mm
Height 2095mm
Weight 5750 - 6000kg

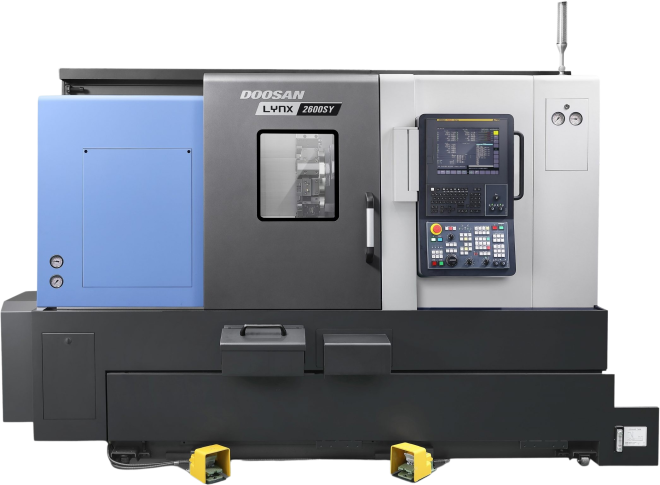

Image representative of Series and may not be the exact model

The Doosan Lynx 2600Y Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
