CNC Machining Centres
High performance, high precision vertical and horizontal CNC machining centres from DN Solutions – formerly Doosan
Find Your Perfect Product
Wide Range of Machine Centres
Class Leading CNC Machining Centre
With significant R&D capabilities, DN Solutions is a global leader in the development and manufacture of high-tech CNC machine centres that efficiently serve the needs of production driven industry sectors, including automotive, aerospace and medical.
The extensive DN Solutions machine tool range is second to none and consistently enjoys the highest levels of customer satisfaction. As well as encompassing best-in-class 5-axis CNC machines, the range includes:
- Vertical Machining Centres
- Twin-Pallet Vertical machining centres
- 5-Axis Vertical machining centres (Best-in-class)
- Horizontal Machining Centres
- Double Column Machines
Our Products
Select the machine type or series you’d like to explore, or scroll down for a full list of products in this category, and filter by the factors that matter to you.
- X-Axis Travel - 520 - 2,160mm
- Spindle taper - 40, 50
- Spindle RPM - 8,000 - 15,000
- Rapid rates: 42m/min
- Spindle: Built-in 37kW/15,000rpm (214N-m)
- Thermal compensation systems
- Box guide-way, heavy-duty design and build
- BT 40 or BT 50 spindle/tooling configuration
- Gear-box driven & built-in spindle options
- Fanuc or Siemens control
- X-Axis Travel - 770mm
- Spindle Taper - 40
- Spindle RPM - 12,000
- X-Axis Travel - 520 - 762mm
- Spindle taper - 40
- Spindle RPM - 10,000 - 12,000
- X-Axis Travel - 3,000mm
- Spindle taper - 40
- Spindle RPM - 12,000 - 18,000
- Compact 3-axis vertical machining center
- 7.5kW/8,000rpm spindle
- 24m/min rapid rates
- DN Solutions Fanuc i control
- B-axis indexing table
- Powerful high-torque spindles
- 40m/min rapids
- 500mm x 500mm table size (x 2)
- Pallet Size - 400 - 800mm
- Spindle taper - 40, 50
- Spindle RPM - 6,000 - 20,000
- Box guide-way design
- Powerful, high-torque (gearbox driven) spindles
- Large tool magazines (up to 376 tools)
- B-axis indexing table
- Up to 800mm x 800mm table size (x2)
- Box guide-way design
- Powerful, high-torque (gearbox driven) spindles
- Large tool magazines (up to 256 tools)
- B-axis indexing table
- Up to 1250mm x 1250mm table size (x2)
- 630mm diameter rotary tilting table
- 15,000rpm/20,000rpm spindle
- 42m/min rapids (X/Y/Z)
- 150 degree A-axis tilt (+30/-120 degrees)
- Powerful advanced spindles
- 3 + 2 and full simultaneous 5-axis machining
- Choice of controls – Heidenhain, Fanuc or Siemens
- 3-axis and 5-axis models available
- High-speed spindles (12.6kW/40,000rpm)
- Linear scales
- Heidenhain Control
- Rotary Table Diameter - 500mm
- Spindle Taper - 40
- Spindle RPM - 18,000
- X-Axis Travel - 4000mm
- Rotary Table Diameter - 800 - 1050mm
- Spindle RPM - 10,000 - 12,000
- Pallet Size - 800mm
- Spindle Taper - 50, HSK A100
- Spindle RPM - 6,000 - 15,000
- High reliability, fast processing
- High speed, high productivity (best in class)
- Light to heavy duty cutting
- Enhanced stability and user convenience
- X-Axis Travel - 1,040mm
- Spindle taper - 40
- Spindle RPM - 8,000 - 12,000
- Extreme high productivity performance
- High accuracy control
- Powerful spindle technology
- Compact design – rigid build
- Integrated thermal compensation and cooling systems
- Rigid Construction for Heavy Duty Applications
- Exceptionally Durable All-in-One Single Frame Construction
- High productivity and high accuracy
- Integrated thermal compensation and cooling systems
- Powerful Spindle Technology, High Precision Built-in Spindle
- Convenient 2 door access
- High Rigidity machine structure with excellent cutting performance
- Integrated thermal compensation and cooling systems
- High contouring speed and accuracy
- High-speed spindles
- Thermal management system
- Fanuc or Heidenhain controls
- High rigidity
- High precision spindle for stable surface accuracy
- Integrated thermal compensation and cooling systems
- Bridge type structure for high-performance, high-accuracy machining
- Low noise and high precision and performance spindle
- Integrated thermal compensation and cooling systems
- Ceramic and graphite dust protection packages to maintain reliability and accuracy of axis and spindle
- Low vibration built-in spindle
- Integrated thermal compensation system
- Powerful 12,000rpm spindle
- Large work-piece table (up to 4,000mm x 2,500mm)
- X-Axis Travel Range - 3,250 - 5,250mm
- Y-Axis Travel Range - 2,500 - 3,000mm
- Z-Axis Travel - 800 - 1,100mm
- Table Size - 4,990 X 1,500mm
- Spindle Taper - HSK63-A
- Spindle RPM - 30,000
All CNC Machining Centres
Showing 1-12 of 90 products

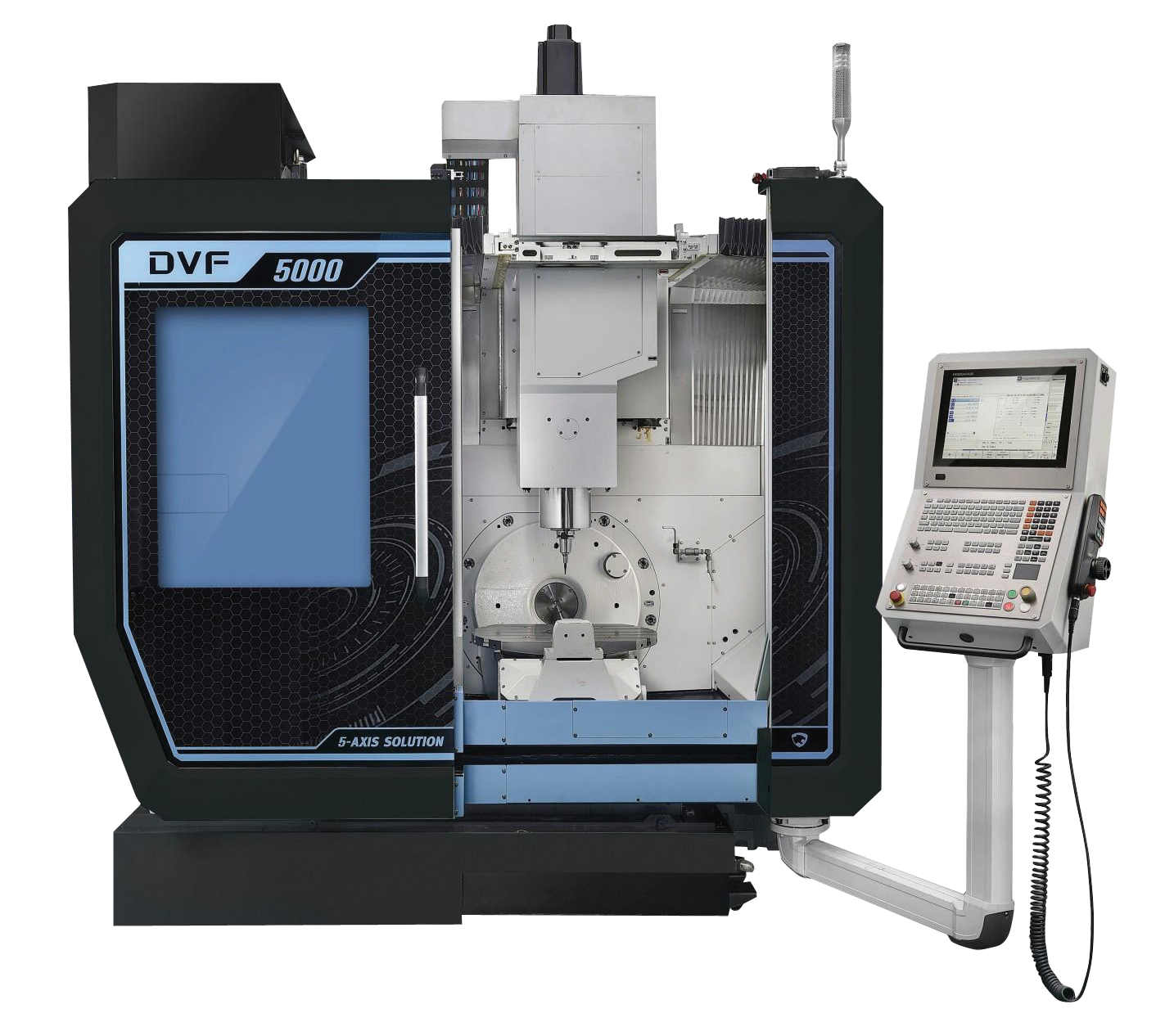

DVF 5000 (Second Generation)
Vertical 5-Axis CNC Machining Centres
- 37kW/20000rpm spindle
- 120ea tool stations
- 2795 x 2347 x 2867 mm (LxWxH)
DNM 6700
Vertical Machining Centres
- 18.5kW/12000rpm spindle
- 40ea tool stations
- 2597 x 3350 x 3120 mm (LxWxH)
DVF 4000
Vertical 5-Axis CNC Machining Centres
- 18.5kW/12000rpm spindle
- 30ea tool stations
- 2750 x 2205 x 2760 mm (LxWxH)
VX 6500G
Die and Mould Machine Tools
- 18.5kW/12000rpm spindle
- 30ea tool stations
- 4390 x 2940 x 3100 mm (LxWxH)
VX 6500C
Die and Mould Machine Tools
- 18.5kW/12000rpm spindle
- 30ea tool stations
- 3000 x 2920 x 3100 mm (LxWxH)
MP 6500
Die and Mould Machine Tools
- 22kW/40000rpm spindle
- 30ea tool stations
- 3315 x 2820 x 3036 mm (LxWxH)
NX 5500 II
Die and Mould Machine Tools
- 22kW/40000rpm spindle
- 30ea tool stations
- 2530 x 2900 x 3064 mm (LxWxH)
DVM 650 II
Die and Mould Machine Tools
- 22kW/20000rpm spindle
- 30ea tool stations
- 2692 x 3350 x 2905 mm (LxWxH)
DVM 500 II
Die and Mould Machine Tools
- 22kW/20000rpm spindle
- 30ea tool stations
- 2462 x 3350 x 2789 mm (LxWxH)
VM 6500
Die and Mould Machine Tools
- 15.6kW/12000rpm spindle
- 40ea tool stations
- 2674 x 3350 x 2950 mm (LxWxH)
VM 5400
Die and Mould Machine Tools
- 15.6kW/12000rpm spindle
- 40ea tool stations
- 2444 x 3350 x 2855 mm (LxWxH)
VM 1260
Die and Mould Machine Tools
- 30kW/12000rpm spindle
- 40ea tool stations
- 5645 x 6938 x 3930 mm (LxWxH)
Filter
Related Case Studies
New machine delivers additional capacity, flexibility and process efficiencies
DEM 4000 Vertical Machining Centre
In just a few weeks, Rapid Precision’s new DEM 4000 has proved its worth, improving productivity and process efficiencies, as well as helping the company reduce backlogs and avoid production bottlenecks.
A complete success!

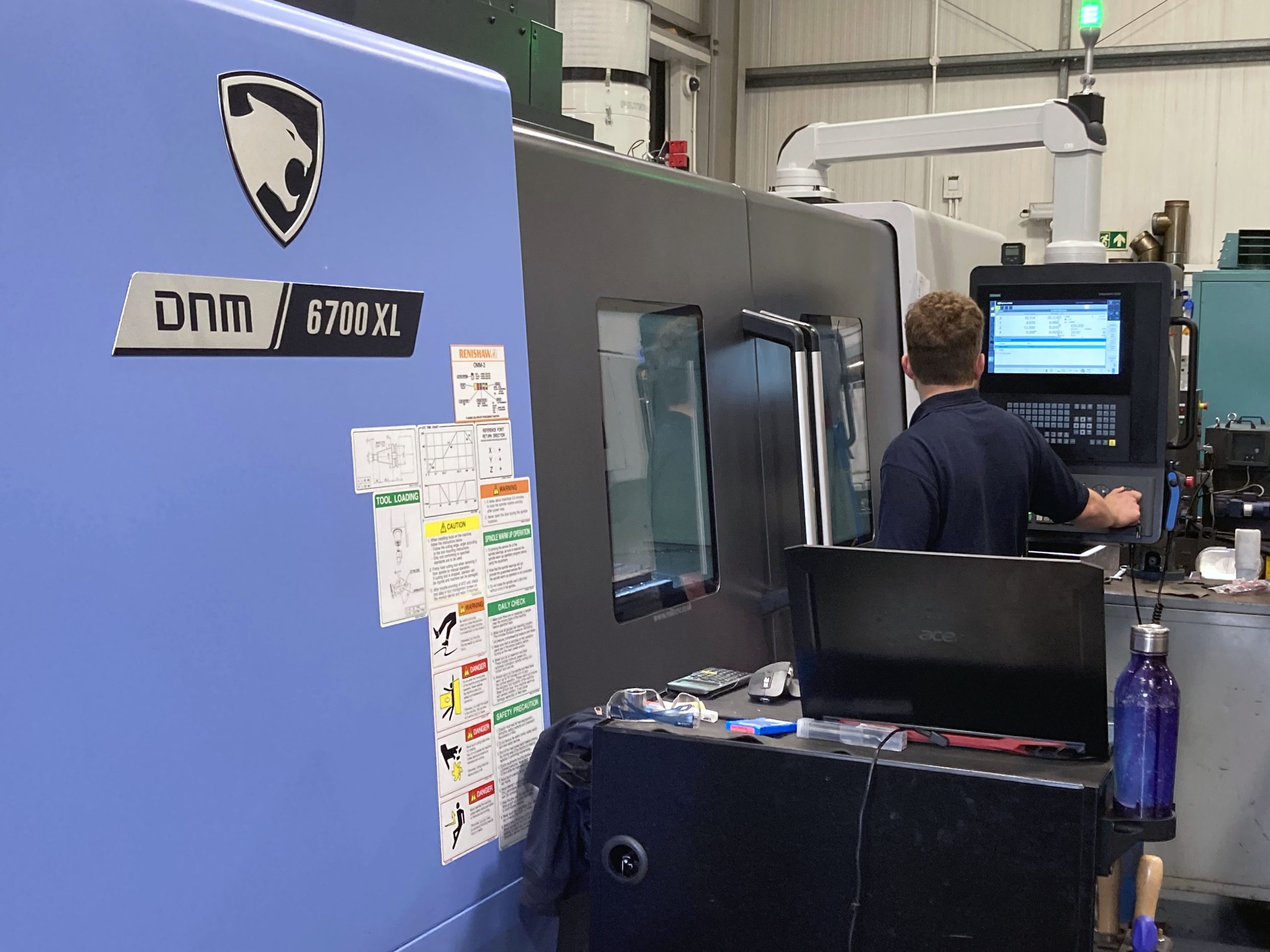

DNM 6700XL Vertical Machining Centre
Complete Engineering Services’ investment in a Lynx 2600Y multi-tasking lathe and a DNM 6700XL machining centre are paying dividends and helping the company improve productivity, process efficiencies and profitability.
Medically sound investments
DVF 5000 (Second Generation) Vertical 5-Axis Machining Centre
Oracle Precision invests in three new advanced simultaneous 5-axis machining centres with integrated automation from Mills CNC.
Get in touch
If you’d like to find out more about any of our machines, if you’d like a brochure or want to book a demo, then we’d love to hear from you. Whether you’re looking for a specific CNC machining centre or want to know more about our turnkey or automated solutions, then Mills CNC can help.
