Doosan Puma 2600 Series

Doosan Puma 2600 series lathes

Features
  • 10″/12″ chuck / 76mm bar capacity
  • Driven tooling (7.5kW/5000rpm)
  • 105mm Y-axis stroke
  • Long bed models available
Share this series

or copy link

PUMA 2100MS_Cutting demo
PUMA 2100MS_Cutting demo

Puma 2600 lathes are the number one choice for component manufacturers looking for proven turning performance. All machines in the range deliver increased accuracies and repeatability’s, superior cutting performance and greater process reliability.

The box guide-way machines have a 10″/12″ chuck/76mm bar capacity, and are available in two bed lengths – 755mm and 1275mm.

In addition to their impressive technical specifications, Puma 2600 lathes are supplied by Mills with: Automatic Tool Setters, Parts Catchers, tailstocks (for non- sub-spindle machines), and the Manual Guide/Conversational Programming System, as standard.

There are six different models in each bed length and manufacturers can select Puma 2600 machines with sub-spindles, driven tools, C-axes and Y-axes.

Technical Specification

Chuck size 10 - 12inch
Max. Turning Diameter 376 - 481mm
Max. Turning Length 520 - 1310mm
X Axis Rapid Traverse 30m/min
Z Axis Rapid Traverse 30m/min
Max. Spindle Speed 2800 - 4000r/min
Max. Spindle Power 18 - 22kW
Max. Spindle Torque 235 - 1123N·m
No. of tool station 12 - 24
X Axis Travel distance 260mm
Y Axis Travel distance 105mm
Z Axis Travel distance 590 - 1350mm
Bar Capacity 76 - 81mm
Rotary Tool r/min 5000r/min
Max. Sub Spindle Speed 4500 - 6000r/min
Max. Sub Spindle Power 7 - 15kW

Series Dimensions

Length 3415 - 4438mm
Width 1863 - 2049mm
Height 1900 - 2163mm
Weight 4900 - 7950kg

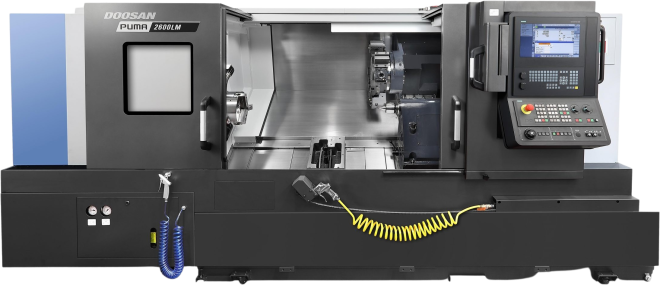

Image representative of Series and may not be the exact model

The Doosan Puma 2600 Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
