Doosan Puma SMX Series

The Doosan Puma SMX multifunction mill turn center has a total of 9 axes for incredible versatility

Features
  • Chuck Size - 300 - 380mm
  • Max Turning Diameter - 660mm
  • Max Turning Length - 2,540mm
Share this series

or copy link

DOOSAN l PUMA SMX5100 series l CNC l NEW MACHINE l MULTITASKING
DOOSAN l PUMA SMX5100 series l CNC l NEW MACHINE l MULTITASKING

With an optional tool capacity of up to 120 tools, the SMX series of 9 axis mill turn center machines can handle pretty much any part for any industry. These roller linear guideway multi-function machines include left and right opposing spindles, and are designed with speed, precision and flexibility in mind.

Technical Specification

Chuck size 8 - 21inch
Bar Capacity 65 - 165mm
Max. Turning Diameter 600 - 830mm
Max. Turning Length 1040 - 4070mm
Max. Left Spindle Speed 1500 - 5000r/min
Max. Left Spindle Power 22 - 37kW
Max. Left Spindle Torque 467 - 4200N·m
Max. Right Spindle Speed 1500 - 5000r/min
Max. Right Spindle Power 22 - 37kW
Max. Right Spindle Torque 467 - 4200N·m

Series Dimensions

Length 4845 - 10749mm
Width 2770 - 3597mm
Height 2750 - 3398mm
Weight 14900 - 39000kg

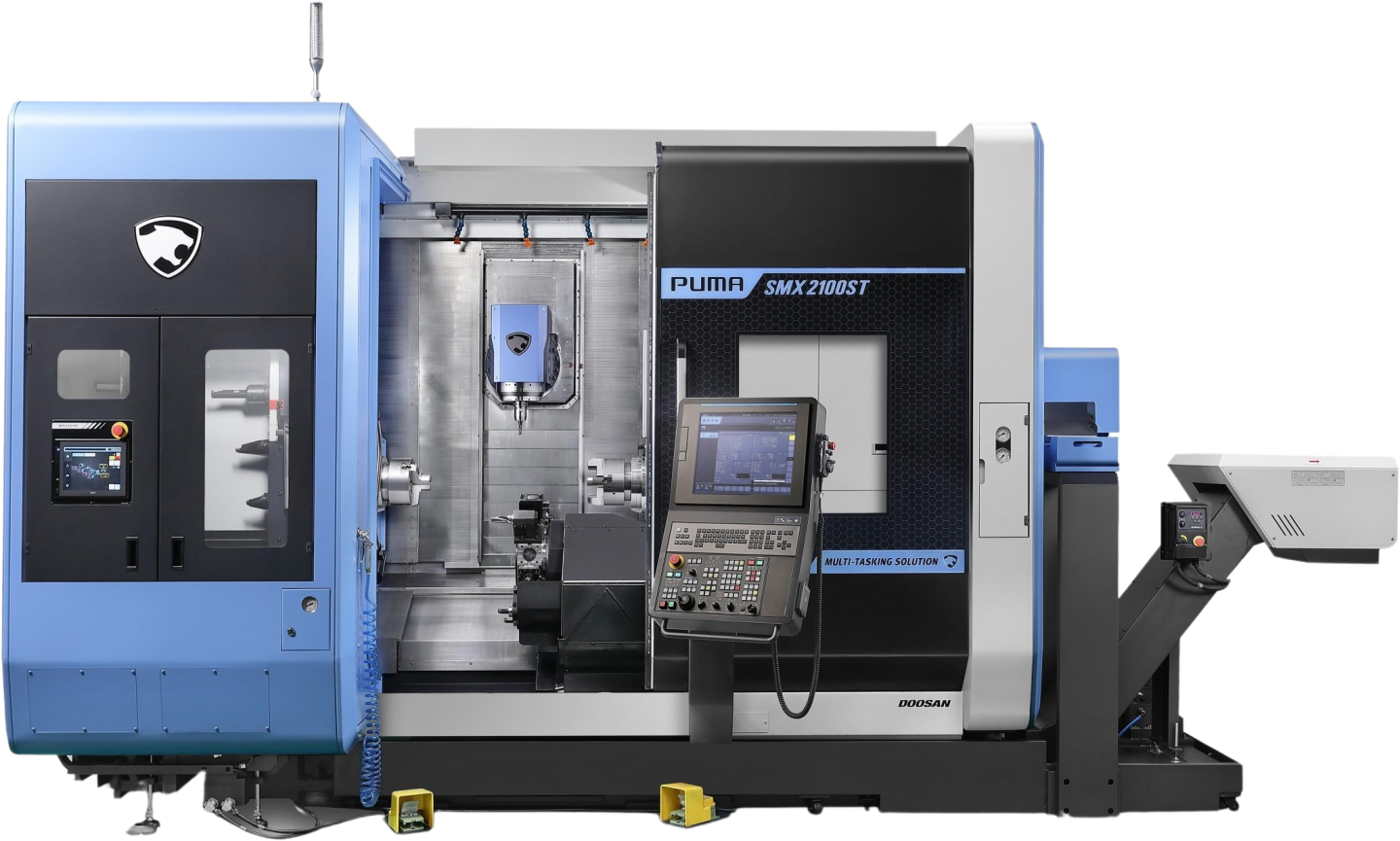

Image representative of Series and may not be the exact model

The Doosan Puma SMX Series is compatible with Fanuc and Siemens.

The Mills CNC Projects' Team, incorporating experienced engineers, will undertake a site survey and create a tailored machine delivery and installation plan that is pre-agreed with customers.

The project team will then manage the whole process and act as a seamless interface between the customer, Mills CNC and any required 3rd party specialist service providers through delivery, installation and commissioning of the machine
